KASI Aviation’s tried and true survey platform, the PA-31 type aircraft is a workhorse with a wide range of available aerial survey specific mods.
Having been a leader in supporting North and Central American aerial survey since its incorporation, KASI aviation’s aircraft have flown a wide variety of sensor suites aerial survey equipment.

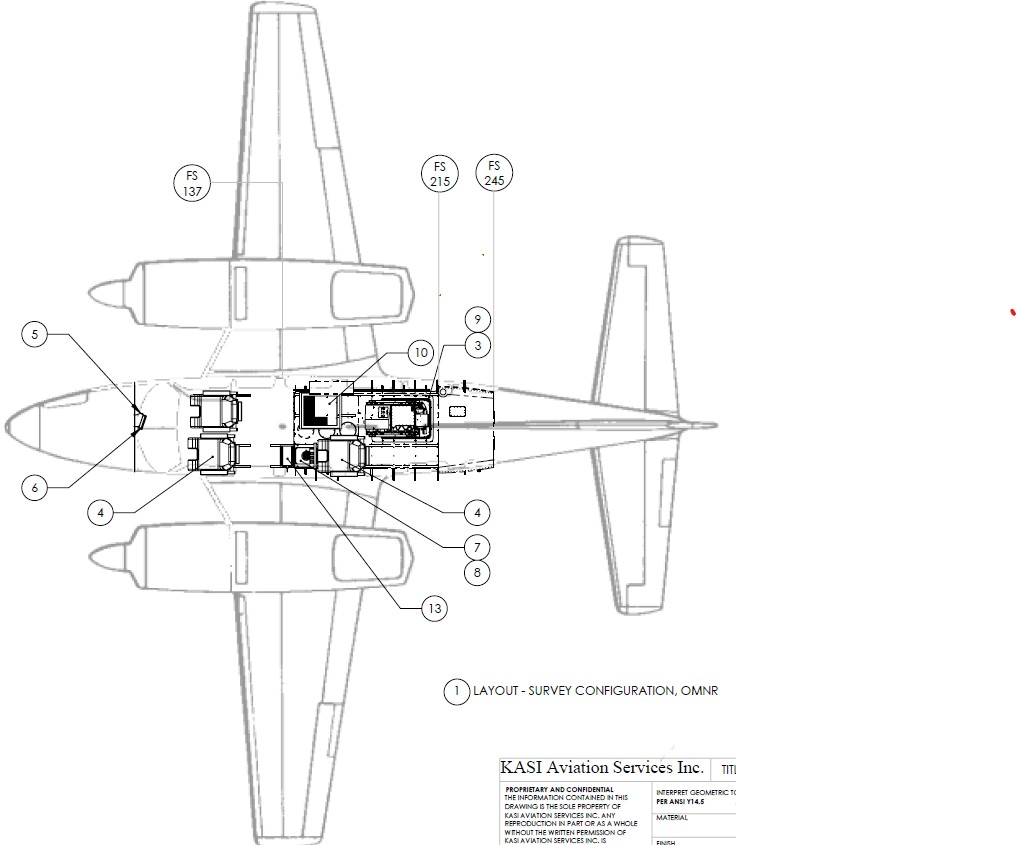

Below are just a few survey specific modifications which have been developed make the PA-31-350 the ideal survey platform.
Large Format Camera Port

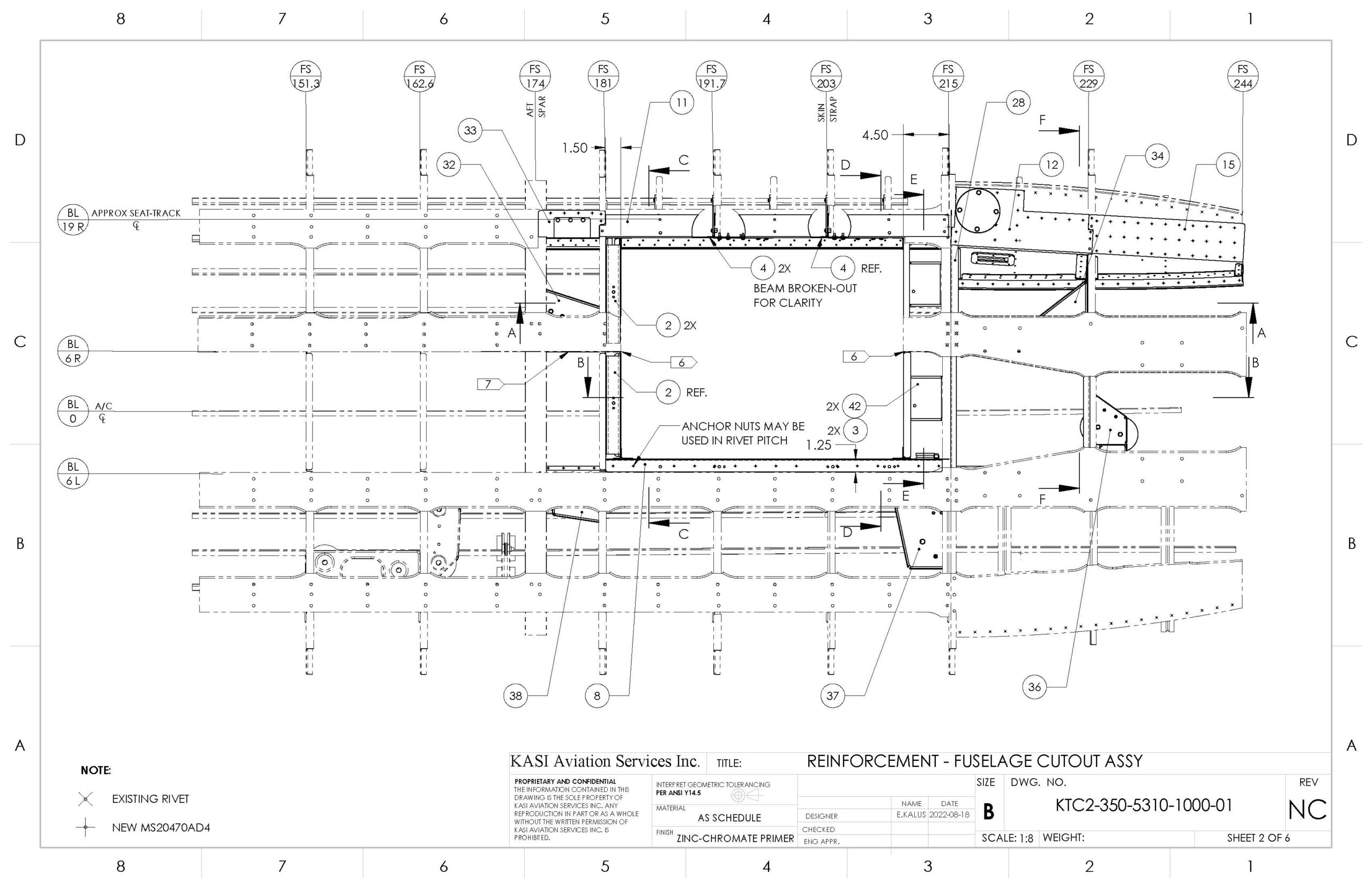

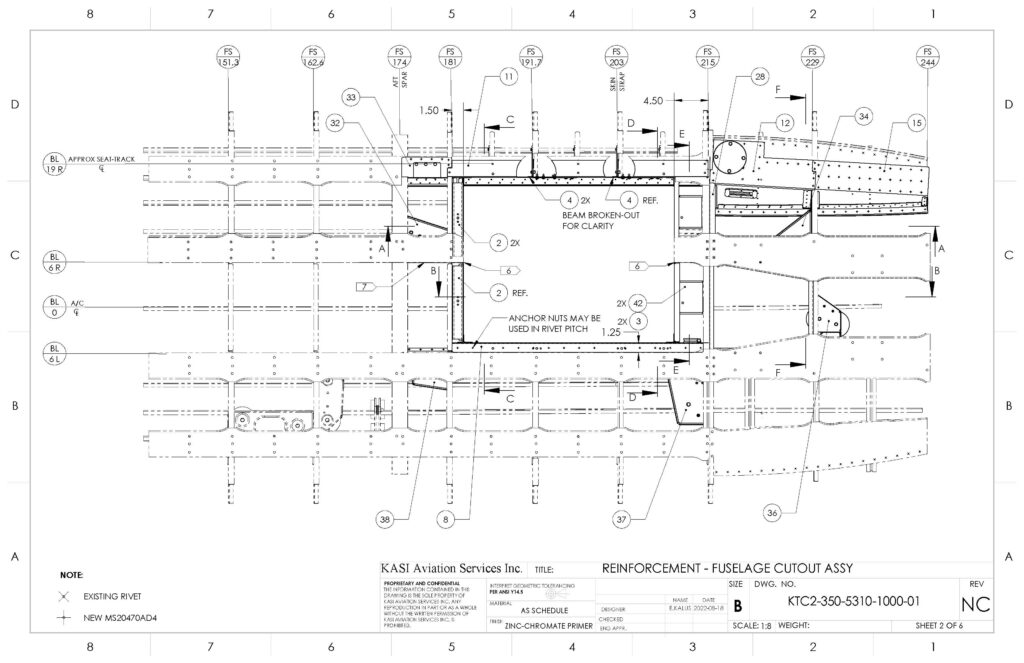

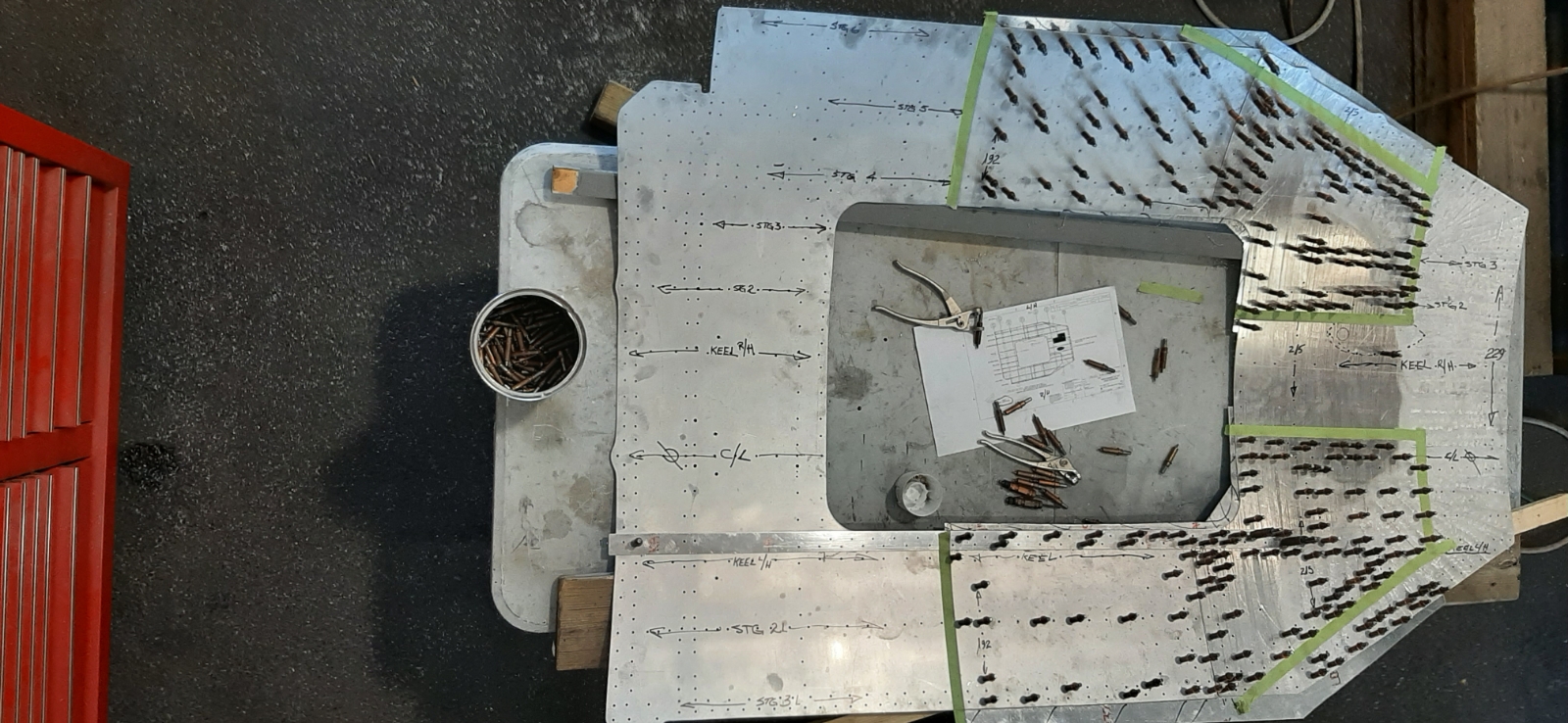

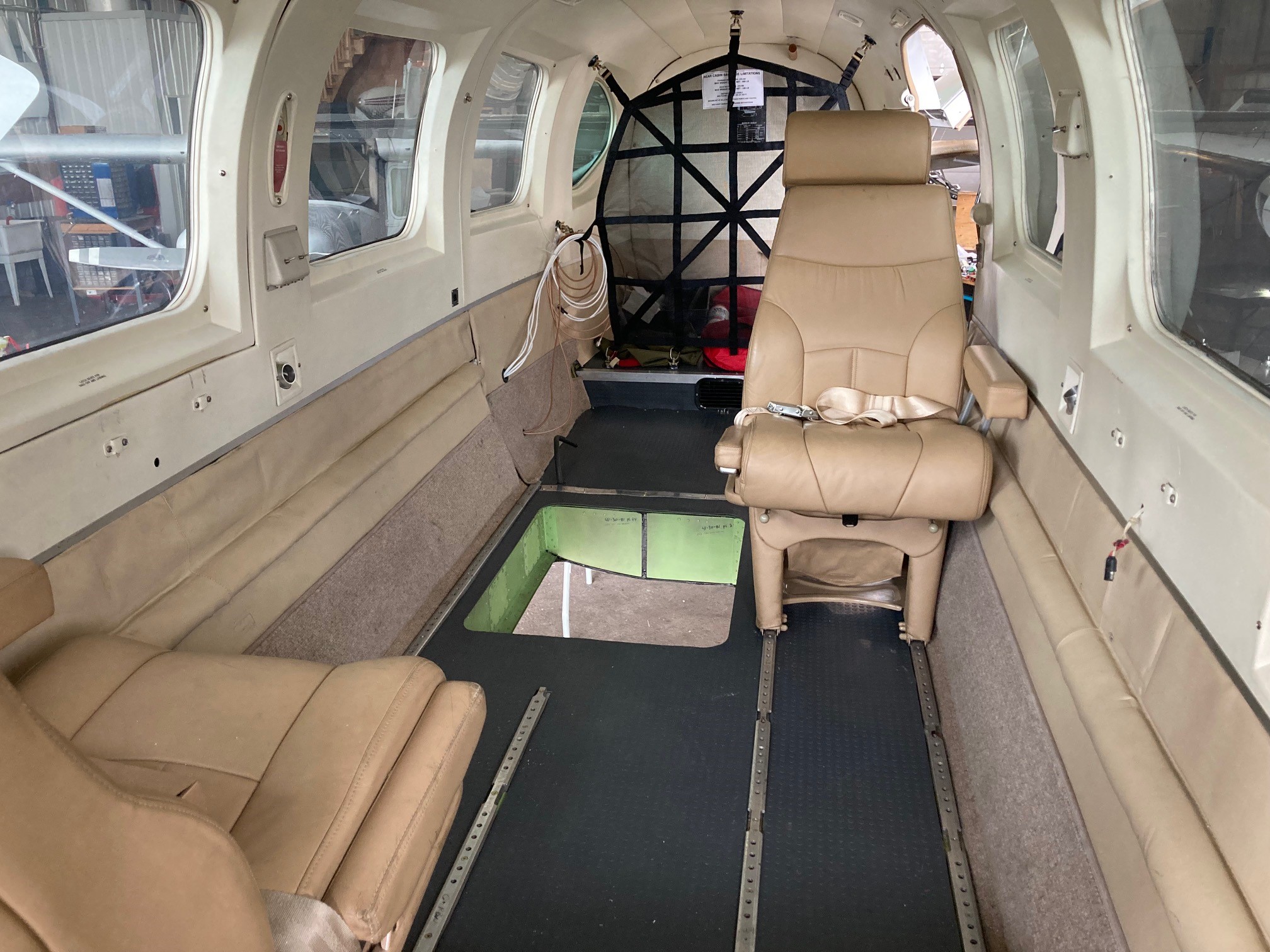

This modification installs a large format Camera Port in the aft fuselage of the aircraft. This Camera Port’s outer dimensions are 21″ x 28″ allowing for a greater variety of sensor suites to be installed and allows for improved weight and balance adjustment.
MODEL APPLICABILITY: PA-31-350
TECHNICAL PUBLICATIONS:
Found below is the list of the most up-to-date Documents regarding the mod.
- sSTC Q-LSA22-020/D | Issue. 1
- Flight Manual Supplement | Rev. NC
- Maintenance Manual Supplement | Rev. NC
Email us regarding up-to-date documentation or questions.
Heater Exhaust Extension

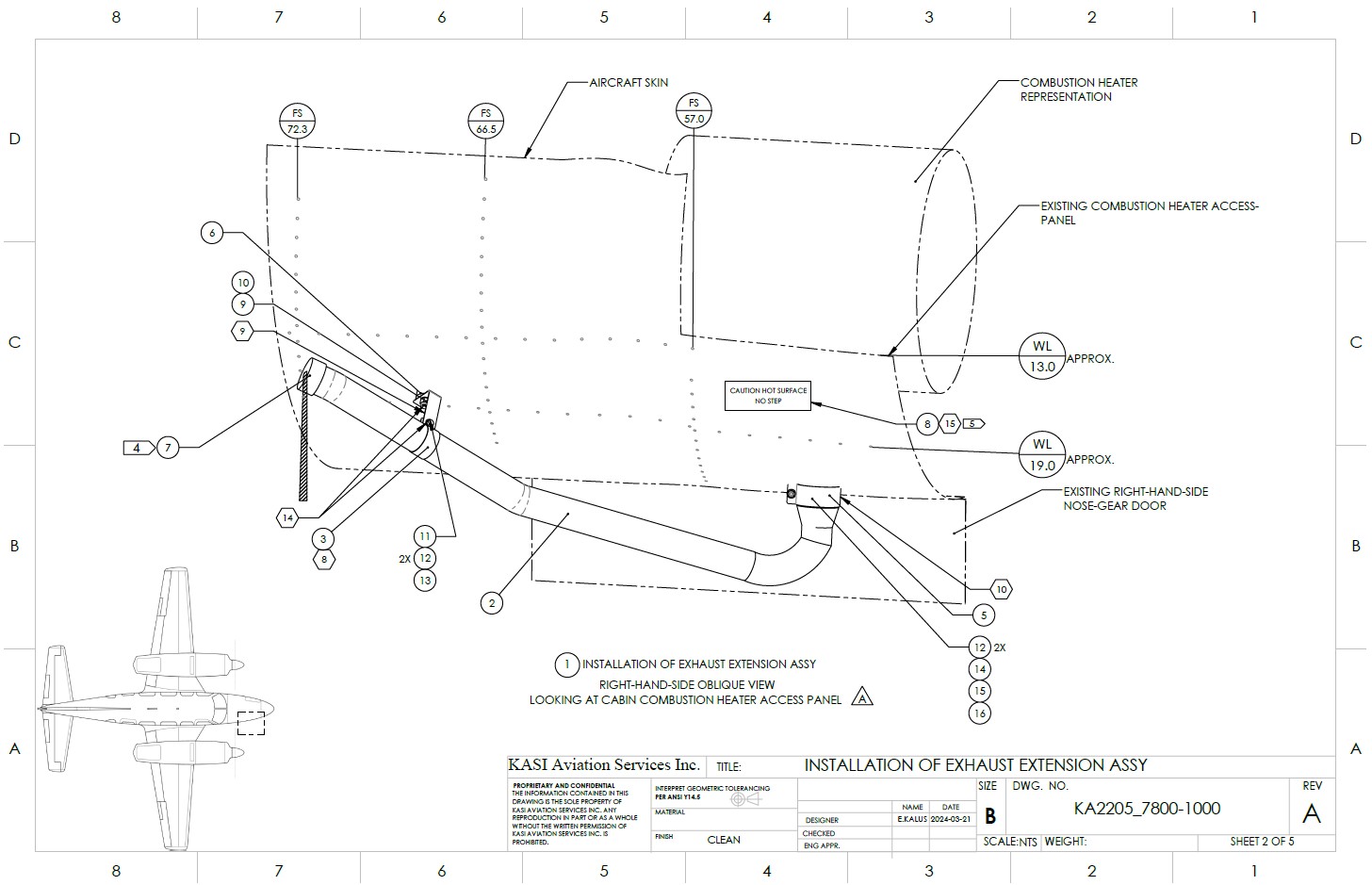

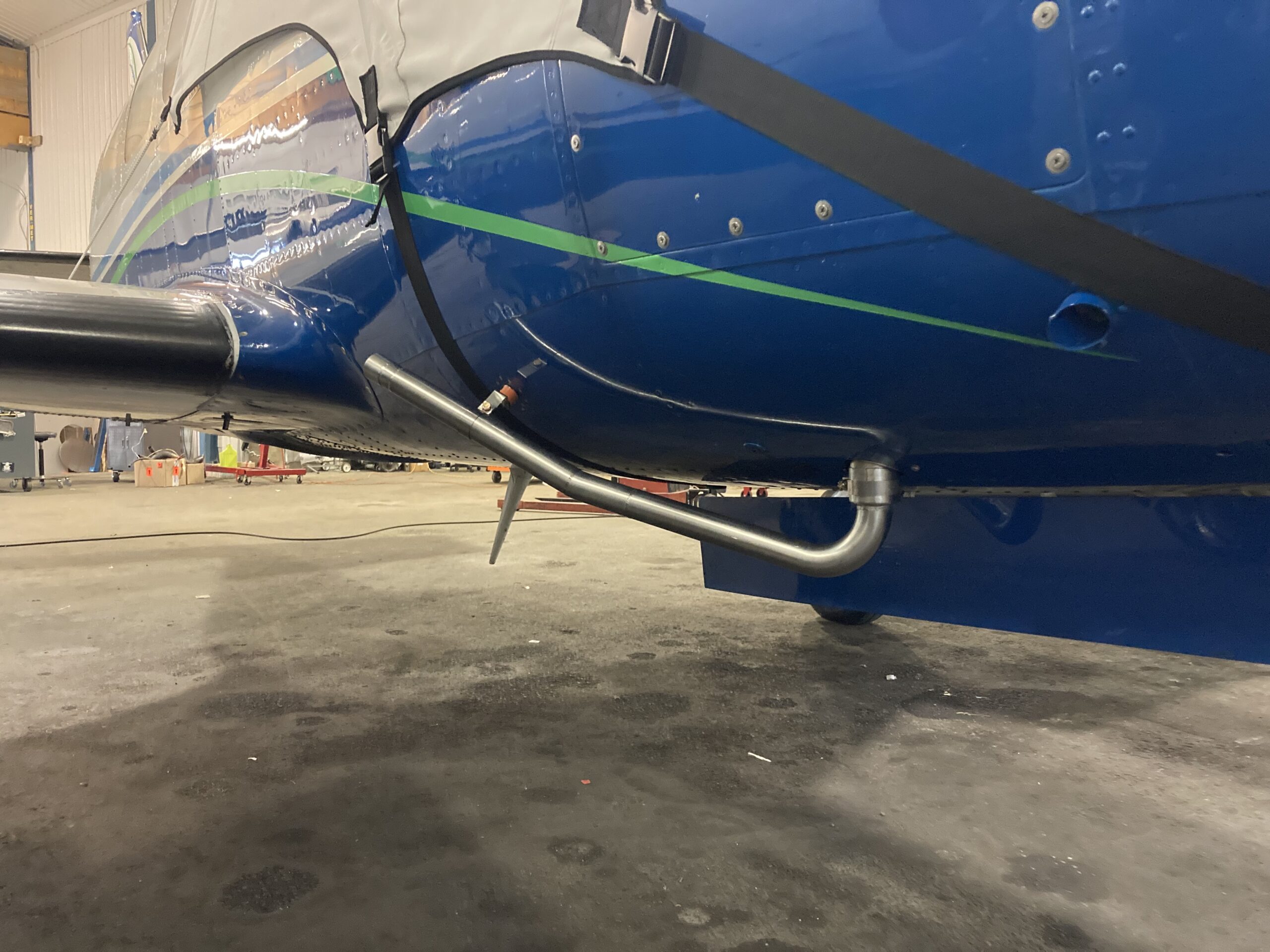

This modification adds an Extended Exhaust Pipe to the cabin combustion heater. The Extended Exhaust Pipe is positioned on the cockpit right-hand lower fuselage and deviates the combustion heater’s exhaust gasses over the wing root. This eliminates any possible issues of exhaust ingress into the cabin by the camera port(s) and eliminates possible heat-hazing or damage to the mission equipment and lens from exhaust gas streams.
Model Applicability: PA-31-350
TECHNICAL PUBLICATIONS:
Found below is the list of the most up-to-date Documents regarding the mod.
- Canadian STC SA24-24 | Issue. 1
- USA STC SA00225IB | Issue. 1
- Flight Manual Supplement | Rev. NC
- Maintenance Manual Supplement | Rev. NC
Email us regarding up-to-date documentation or questions.
Inquire Design / Certification Services:
Ask about our design and certification services for Canadian aircraft modifications. We work closely with local Delegates to get your project completed and certified as quickly and efficiently as possible.
Capabilities: Structures, Equipment and Flammability
